DO203 Parking Occupation Sensor with Vehicle ID
DO203 Smart Parking Occupation Sensor with Vehicle Identification
24GHz Radar + Magnetic Detection + Bluetooth BLE Vehicle Beacon Reader
DO203 is a smart parking occupation sensor for outdoor parking detection and vehicle identity recognition. It uses 24GHz microwave radar and magnetic detection for up to 99% parking occupancy accuracy. When parking status changes, the built-in Bluetooth BLE beacon reader wakes up and scans nearby vehicle beacons, uploading up to 3 selected beacon records to the platform for vehicle identity judgement. IP68 waterproof, surface-mounted, with LoRaWAN, 4G, Cat-M+NB-IoT, and NB-IoT wireless options.
Last updated: June 12, 2026
Customer Value
Parking occupancy detection plus vehicle identity recognition in one sensor
Radar + Magnetic Dual Detection
24GHz microwave radar and magnetic sensing work together for up to 99% parking occupancy detection accuracy with reduced false triggers in outdoor environments.
BLE Vehicle Identification
Built-in Bluetooth beacon reader scans nearby vehicle beacons on parking status change. Up to 3 selected beacon records uploaded per event for platform-side vehicle identity judgement.
Automatic Event Trigger
Beacon scanning triggers automatically when parking status changes from vacant to occupied or occupied to vacant. Configurable 30-second scanning window ensures reliable beacon detection.
Smart Beacon Filtering
Onboard filtering and ranking by valid beacon data, detection count, and RSSI strength ensures the most relevant vehicle beacon records are uploaded to the platform.
Bluetooth APP Configuration
Configure detection parameters, beacon scanning duration, and wireless settings via mobile phone app or PC app over Bluetooth. No physical access to internal components needed.
IP68 Outdoor-Ready
Sealed IP68 enclosure rated for outdoor surface-mounted installation. 183x183x38 mm compact form factor compatible with standard parking bay deployment.
Hard Facts
Key specifications for product evaluation
Parking detection accuracy
Max BLE records per event
Beacon scanning window
Battery life (16 events/day)
Dual-sensor detection
Enclosure protection rating
Sensor dimensions
Wireless connectivity options
Detection and Identification
How DO203 detects occupancy and identifies vehicles
DO203 combines dual-sensor parking detection with Bluetooth beacon-based vehicle identity recognition to provide richer parking event data for billing, enforcement, and operations.
Occupancy Detection
24GHz microwave radar and magnetic detection work together to determine parking space occupancy with up to 99% accuracy. The dual-sensor approach improves reliability and reduces false triggers in outdoor environments.

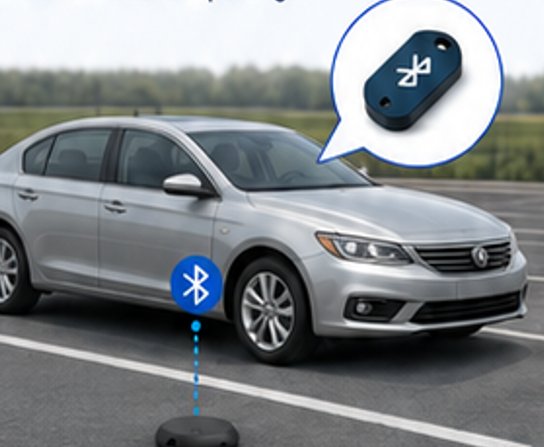

Vehicle Identification
When parking status changes, the built-in Bluetooth beacon reader wakes up and scans for nearby vehicle beacons for 30 seconds. The sensor filters and ranks detected beacons by RSSI and detection count, uploading up to 3 selected records for platform-side identity judgement.
Technical Specifications
DO203 Smart Parking Occupation Sensor with Vehicle ID key specifications
| Item | Specification |
|---|---|
| Product Name | DO203 Smart Parking Occupation Sensor with Vehicle Identification |
| Detection Method | 24GHz microwave radar and magnetic detection |
| Detection Accuracy | Up to 99% under typical installation conditions |
| Vehicle Identification | Built-in Bluetooth BLE beacon reader |
| Beacon Scanning | 30 seconds per event (configurable), up to 3 beacon records uploaded |
| Beacon Filtering | Onboard filtering by valid data, detection count, and RSSI |
| Vehicle Beacon | Optional accessory, sold separately (Dingtek Bluetooth vehicle beacon) |
| Wireless Options | LoRaWAN / 4G / Cat-M+NB-IoT / NB-IoT |
| LoRaWAN Bands | CN470 / IN865 / EU868 / US915 / AU915 / AS923 |
| 4G Bands (Asia/Europe/Africa) | FDD: B1 / B3 / B7 / B8 / B20 / B28 |
| 4G Bands (North America) | FDD: B2 / B4 / B5 / B12 / B13 / B66 / B71 |
| Configuration | Bluetooth by mobile phone app or PC app |
| Temperature Measurement | -30 C to +85 C, +/-0.3 C |
| Humidity Measurement | 0-90% RH, +/-2% RH |
| Operating Temperature | -40 C to +85 C |
| Internal Battery | ER26500 x 3, lithium thionyl chloride, 25500 mAh @ 3.6 V |
| Battery Life | Approx. 3.5 years (detection every 10 min, 16 parking events/day) |
| Waterproof Rating | IP68 |
| Dimension | 183 x 183 x 38 mm |
| Weight | Approx. 1000 g |
| Color | Black |
| Material | ABS + PC |
| Installation | Surface mounting with expansion screws |
| Certification | CE, RoHS ready |
Comparison
DO202 vs DO203 Smart Parking Sensors
Use this comparison to choose the right parking sensor for your project.
| Selection Factor | DO203 with Vehicle Identification | DO202 Smart Parking Sensor |
|---|---|---|
| Detection Method | 24GHz radar + magnetic | 24GHz radar + magnetic |
| Vehicle Identification | Built-in BLE beacon reader, scans vehicle beacons | Not available |
| Detection Accuracy | Up to 99% | Up to 99% |
| Battery Life | Approx. 3.5 years (16 events/day, 10 min cycle) | More than 4 years (4G) or 7+ years (LoRaWAN/NB-IoT) |
| Wireless Options | LoRaWAN, 4G, Cat-M+NB-IoT, NB-IoT | 4G, LoRaWAN, NB-IoT, Multi Tech Cat-M/NB-IoT |
| Configuration | Bluetooth (mobile app or PC app) | Bluetooth |
| Dimensions / Weight | 183 x 183 x 38 mm / 1000 g | 183 x 183 x 38 mm / 1000 g |
| When to Choose | Choose DO203 for projects that need vehicle identity recognition alongside parking occupancy detection, such as roadside parking billing, reserved space enforcement, and vehicle-specific parking management. | Choose DO202 for proven parking occupancy detection with longer battery life where vehicle identification is not required. |
Vehicle Identification Notes
Recommended parking layouts and known limitations
More Suitable For
- Roadside parking spaces arranged front-to-back
- Reserved parking space management
- Smart parking billing and operation
- Vehicle identity confirmation at known spaces
Performance Considerations
- Side-by-side parking: beacon signal overlap may affect recognition
- Nearby vehicles and vehicle structure may influence beacon signals
- Detailed recognition accuracy to be updated after further testing
- Bluetooth vehicle beacon is an optional accessory, sold separately

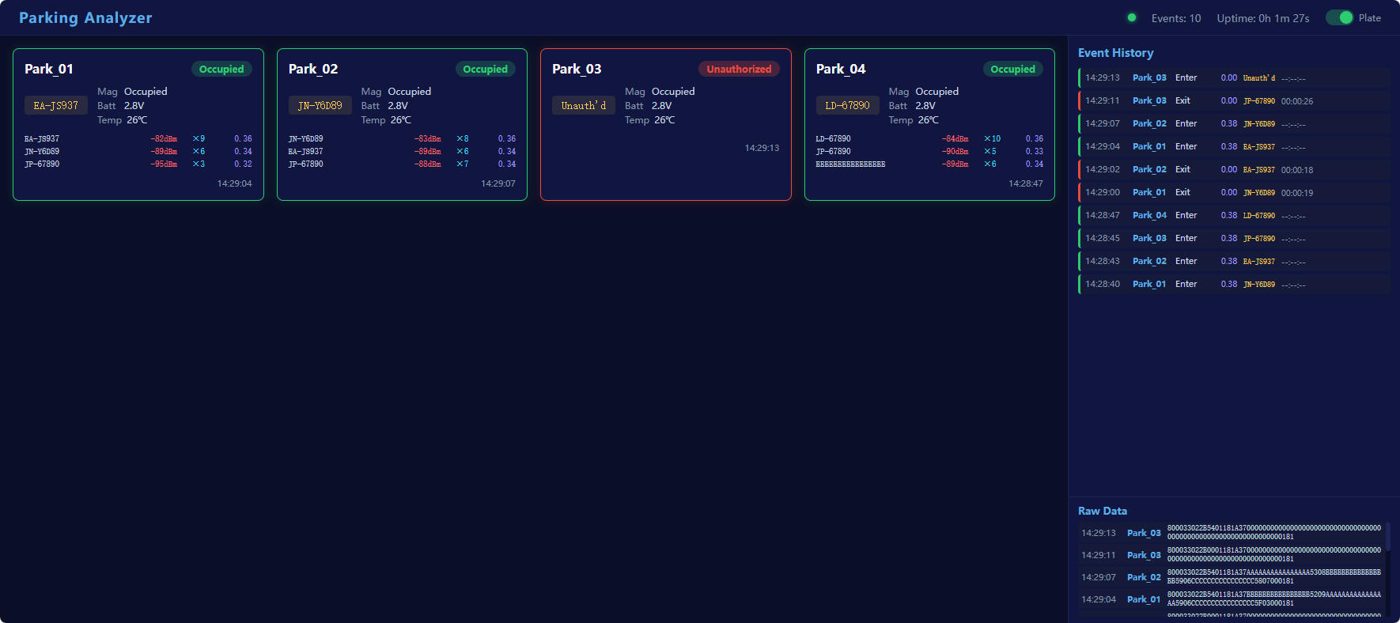

Platform Integration
Cloud platform for parking event and vehicle identity data
DO203 uploads parking occupancy status, vehicle beacon records, and device health data through wireless IoT connectivity. Users can check device status, parking events, vehicle identification data, and historical records through the Dingtek cloud platform or integrate data into their own application systems.
Where to Buy
Request a DO203 project quotation
DO203 is sold by quotation. Bluetooth vehicle beacons are optional accessories ordered separately.
Useful inputs for faster quoting
- Parking layout type (roadside front-to-back or side-by-side)
- Preferred wireless network (LoRaWAN, 4G, Cat-M+NB-IoT, or NB-IoT)
- Vehicle identification requirements and beacon quantity
- Quantity and delivery schedule
FAQ
Frequently Asked Questions about DO203
What makes DO203 different from DO202?
DO203 adds a built-in Bluetooth BLE beacon reader for vehicle identity recognition. When parking status changes, it scans nearby vehicle beacons and uploads up to 3 selected beacon records to the platform. DO202 detects parking occupancy only.
How does Bluetooth vehicle identification work?
A Bluetooth vehicle beacon (optional) is installed in the vehicle. On parking status change, the DO203 beacon reader wakes up and scans for 30 seconds. It filters detected beacons by RSSI and detection count, uploading up to 3 records for platform-side identity judgement.
Is the vehicle beacon included?
No. The Bluetooth vehicle beacon is an optional accessory sold separately. DO203 contains a beacon reader chip, not a beacon itself.
What parking layouts work best?
Vehicle recognition is more suitable for roadside spaces arranged front-to-back. Side-by-side spaces may have reduced performance due to beacon signal overlap. Detailed accuracy data pending further evaluation.
How long does the battery last?
Approximately 3.5 years under typical conditions (16 parking events/day, 10-minute detection cycle) using three ER26500 batteries with 25500 mAh total capacity.
What wireless versions are available?
LoRaWAN (multi-band), 4G (Asia/Europe/North America), Cat-M+NB-IoT, and NB-IoT. Final configuration depends on target region and selected module.
How is DO203 configured?
Via Bluetooth using a mobile phone app or PC app. Parameters include detection settings, beacon scanning duration, and wireless communication configuration.
Is DO203 a standard product?
Yes. DO203 is sold by quotation. Bluetooth vehicle beacons are optional accessories ordered separately. Share parking layout, network preference, and project scale for a quotation.
