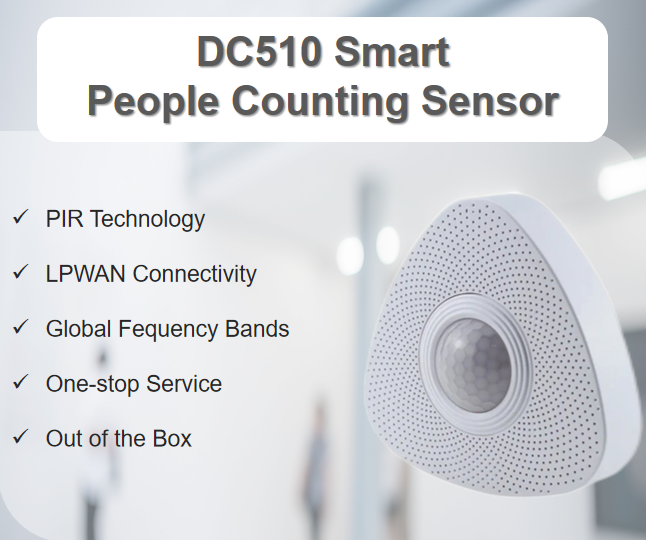

DC510 People Counter
DC510 People Counter
Indoor People Flow Monitoring for Building Operations
DC510 supports indoor people counting and wireless reporting for buildings and public spaces where operators need flow data for service planning, utilization analysis, and facility operations.
Last updated: May 31, 2026
Customer Value
Built for indoor people flow monitoring without cameras
Indoor Counting
Reliable people flow detection for building entrances, corridors, and public spaces.
Wireless Reporting
NB-IoT, LoRaWAN, and 4G for building management integration.
Building Operations
Flow data supports service planning, cleaning schedules, and space utilization.
Platform Ready
Data feeds into cloud dashboards and customer platforms.
Privacy-Safe
Counting without image capture for privacy-compliant deployment.
CE/RoHS Certified
Quality and environmental compliance.
Hard Facts
Hard facts for product evaluation
Building and public spaces
NB-IoT / LoRaWAN / 4G
Counting data
No camera
Certifications
Dashboard ready
Operations support
Flexible power
Applications
People counting for smart buildings, public spaces, and facility operation
DC510 is suitable for office buildings, public facilities, retail spaces, and any indoor environment where people flow data supports operational decisions.
Technical Specifications
DC510 detailed specifications
| Item | Specification |
|---|---|
| Product model | DC510 People Counter |
| Detection principle | PIR (passive infrared) |
| Detection range | Less than 5 m |
| Detection angle | 120 degrees |
| Dimensions | 110 x 109 x 25 mm |
| Net weight | 80 g |
| Color | White |
| Housing material | ABS |
| Wireless variants | 4G, NB-IoT, LoRaWAN |
| 4G bands | LTE-FDD: B1/B3/B5/B8; LTE-TDD: B34/B38/B39/B40/B41 |
| NB-IoT bands | B3/B5/B8/B20/B28 |
| LoRaWAN bands | CN470, EU868, AU915, US915, AS923, and others; optional |
| LoRaWAN parameters | MAC 1.0.3, OTAA activation |
| Cellular protocol | TCP / MQTT |
| Internal battery | 1000 mAh at 3.7 V rechargeable lithium battery |
| Charging interface | Micro-USB, 500 mA at 5 V |
| Charging LED | Red: charging; blue: fully charged |
| Operating temperature | -20 C to +70 C |
| Storage temperature | -40 C to +85 C |
| Data access | CNDINGTEK software application or customer software application |
Comparison
DC500 vs DC510 People Counting Sensors
Compare protection, detection angle, battery type, dimensions, and wireless variants before selecting a model.
| Selection factor | DC500 People Counting Sensor | DC510 People Counter |
|---|---|---|
| Detection principle | PIR passive infrared | PIR passive infrared |
| Detection range | Less than 5 m | Less than 5 m |
| Detection angle | 30 degrees | 120 degrees |
| Dimensions | 100 x 70 x 40 mm | 110 x 109 x 25 mm |
| Net weight | 196 g | 80 g |
| Battery | ER26500 x 1, 8500 mAh non-rechargeable lithium thionyl chloride | 1000 mAh, 3.7 V rechargeable lithium battery |
| Protection | IP68 | No protection rating stated in the datasheet; intended for indoor deployment |
| Wireless variants | 4G, NB-IoT, LoRaWAN, Cat-M/NB-IoT | 4G, NB-IoT, LoRaWAN |
| When to choose | Choose DC500 for IP68 protection, a narrow 30-degree detection angle, and long-life battery deployment. | Choose DC510 for a lighter indoor device, a wider 120-degree detection angle, and rechargeable power. |
Product Video
IoT LPWAN People Counter DC510 Live Demo
Watch the DC510 People Counter demonstration video. For project-specific deployment planning, contact CNDINGTEK support.
Selection Guide
How to Choose the Right DC510 People Counter Configuration
Select based on indoor entrance layout, the 120-degree detection zone, charging access, regional network coverage, and platform integration.
Where to Buy
Request a DC510 People Counter project quotation
DC510 People Counter is sold by quotation. Share entrance layout, counting requirements, network preference, and deployment scale.
Useful inputs for faster quoting
- Entrance/passageway layout and counting zone
- Preferred NB-IoT, LoRaWAN, or 4G network
- Number of counting points, quantity, delivery schedule
FAQ
Frequently Asked Questions about DC510 People Counter
What does DC510 monitor?
Indoor people flow for building operations and service planning.
What technology does DC510 use?
People counting with wireless reporting, privacy-safe design.
Which wireless versions?
NB-IoT, LoRaWAN, and 4G.
Does DC510 capture images?
No. Privacy-safe design.
What certifications?
CE and RoHS.
How is DC510 powered?
Battery-powered.
Platform integration?
Cloud dashboard, analytics, building management.
Standard product?
Yes. Quotation-based pricing.
