DF704 Multi-Point Waste Bin Sensor
DF704 Multi-Point Waste Bin and Vehicle Identification Sensor
Laser ToF Surface Profiling + RFID Collection Verification + Edge AI
DF704 is a multi-point waste bin monitoring sensor that uses laser ToF 4x4 matrix measurement (16 detection points) for fill-level and surface profile estimation. It supports 125kHz LF RFID vehicle identification for collection event recognition, edge AI processing, and wireless IoT connectivity via LoRaWAN, 4G, Cat-M+NB-IoT, or NB-IoT. Suitable for indoor waste bins, outdoor covered bins, and collection verification applications. IP68 enclosure with top-cover installation.
Last Last updated: June 12, 2026
Customer Value
Beyond single-point detection: surface profiling, vehicle identification, and edge intelligence
Multi-Point Surface Profiling

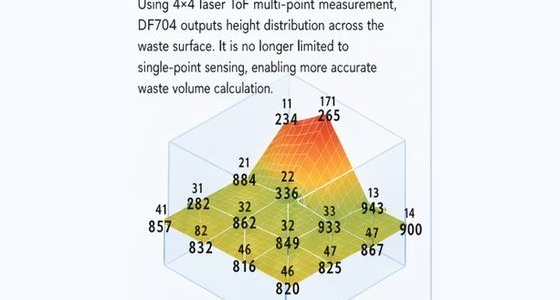

Laser ToF 4x4 measurement matrix with 16 detection points captures height distribution across the waste surface for more accurate fill-level and surface profile estimation than single-point ultrasonic detection.
RFID Vehicle Identification

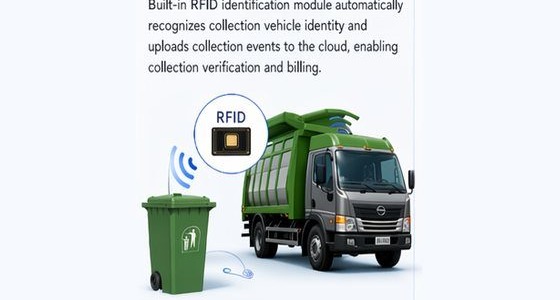

Built-in 125kHz LF wake-up module recognizes collection vehicles within 1-2 m. Automatically triggers measurement and uploads collection events for traceability, billing, and contractor assessment.
Edge AI Event Recognition
Finite state machine and optional machine learning core process sensor data locally to improve detection reliability and collection event judgment without relying solely on cloud processing.
Global Wireless Connectivity
Available in LoRaWAN, 4G LTE, Cat-M+NB-IoT, and NB-IoT versions for flexible deployment across different regions, network conditions, and project scales.
Fire and Temperature Detection
Optional fire and high-temperature risk detection adds an extra safety layer for waste bin monitoring in public areas, campuses, and commercial complexes.
IP68 Outdoor-Ready Enclosure
Sealed IP68 housing rated for outdoor covered-bin applications. Compact 119x119x40 mm form factor with top-cover installation facing downward to the waste surface.
Hard Facts
Key specifications for product evaluation
Laser ToF 4x4 detection matrix
Detection distance, 2 cm blind zone
Height measurement accuracy
RFID vehicle wake-up identification
Battery life (ER26500, 8500 mAh)
Enclosure protection rating
Compact sensor dimensions
Wireless connectivity options
Detection Technology
Three-layer sensing architecture for smart waste operations
Multi-Point ToF Detection
16-point laser ToF matrix captures height distribution, restores surface profile, and outputs height matrix data, fill-level, and surface profile information. Standard 4x4 configuration with 4 m range.
LF Wake-up Vehicle ID
125kHz LF exciter on the collection vehicle wakes DF704 from 1-2 m away. DF704 identifies the vehicle and triggers measurement. Collection completion is determined by waste height change and edge AI.
Edge AI Processing
Finite state machine logic supports local collection event recognition and detection reliability improvement. Machine learning core availability depends on firmware version.
Technical Specifications
DF704 Multi-Point Waste Bin Sensor key specifications
| Item | Specification |
|---|---|
| Product Name | DF704 Multi-Point Waste Bin and Vehicle Identification Sensor |
| Height Detection Principle | Laser ToF multi-point measurement |
| Standard Height Detection | 4 x 4, 16 measurement points |
| Detection Range | Up to 4 m |
| Blind Zone | Approx. 2 cm |
| Height Accuracy | +/-1 cm |
| Temperature Accuracy | +/-2 C |
| Output Data | Fill level, height matrix, surface profile |
| LF Wake-up Frequency | 125 kHz |
| LF Wake-up Distance | 1-2 m (distance from exciter to DF704 sensor) |
| LF Identification Data | Vehicle ID identification |
| Edge AI | FSM supported; MLC availability depends on firmware version |
| Wireless Options | LoRaWAN / 4G / Cat-M+NB-IoT / NB-IoT |
| LoRaWAN Bands | CN470 / IN865 / EU868 / US915 / AU915 / AS923 |
| 4G Bands (Asia/Europe/Africa) | FDD: B1 / B3 / B7 / B8 / B20 / B28 |
| 4G Bands (North America) | FDD: B2 / B4 / B5 / B12 / B13 / B66 / B71 |
| Data Upload Trigger | LF wake-up, alarm-triggered upload, periodic heartbeat upload |
| Configuration | TTL; Bluetooth optional |
| GPS/BEIDOU | Optional, not standard |
| Fire/High-Temp Detection | Optional |
| Internal Battery | Non-rechargeable lithium thionyl chloride, ER26500 x 1, 8500 mAh @ 3.6 V |
| Battery Life | Approx. 2 years (varies with usage conditions) |
| Operating Temperature | -30 C to +85 C |
| Protection Level | IP68 |
| Dimension | 119 x 119 x 40 mm |
| Weight | 450 g |
| Color | Black |
| Material | ABS |
| Installation | Top-cover installation, facing downward to waste surface |
| Certification | CE, RoHS ready |
Comparison
DF703 vs DF704 Smart Waste Bin Sensors
Use this comparison to choose the right waste bin sensor for your project.
| Selection Factor | DF704 Multi-Point Waste Bin Sensor | DF703 Smart Waste Bin Sensor |
|---|---|---|
| Detection Method | Laser ToF multi-point, 4x4 matrix (16 points) | Ultrasonic single-point |
| Output | Fill level, height matrix, surface profile | Fill level, fire, tilt status |
| Vehicle Identification | 125 kHz LF RFID wake-up and vehicle ID | Not available |
| Edge AI | FSM standard; MLC optional | Not available |
| Detection Range | Up to 4 m, 2 cm blind zone | Up to 4 m |
| Battery | ER26500 x 1, 8500 mAh, approx. 2 years | ER26500 x 3, 25500 mAh, longer life |
| Wireless Options | LoRaWAN, 4G, Cat-M+NB-IoT, NB-IoT | NB-IoT, LoRaWAN, 4G |
| Dimensions | 119 x 119 x 40 mm, 450 g | 183 x 183 x 38 mm, approx. 1000 g |
| GPS/BEIDOU | Optional | Optional |
| Outdoor Suitability | Covered bins only; sunlight affects ToF | Outdoor bins (IP68) |
| When to Choose | Choose DF704 for projects that need surface profiling, collection vehicle identification, and edge AI for smart collection verification and billing. | Choose DF703 for proven single-point fill-level, fire, and tilt monitoring with longer battery life for outdoor deployments. |
Application Notes
Recommended and not-recommended deployment scenarios
Recommended Applications
- Indoor waste bins
- Indoor open-top bins
- Outdoor covered waste bins
- Outdoor bins with top-cover installation
- Smart waste management with collection verification
- Commercial complex waste management
- Campus and park waste bin monitoring
- Street-side covered bin monitoring
Not Recommended
- Outdoor open-top bins
- Outdoor bins with direct sunlight entering the ToF measurement field
- Installations where the sensor cannot face downward to the waste surface
- Bins with the cover normally open
Important: Outdoor sunlight may reduce laser ToF detection distance and measurement reliability. In strong outdoor sunlight, the detection distance may become shorter, readings may become unstable, or valid data may not be obtained.
Installation
DF704 sensor and LF exciter deployment
Package Contents
Standard DF704 package items
| Item | Quantity |
|---|---|
| DF704 Sensor | 1 |
| ER26500 Battery | 1 |
| Screws M4 x 30 | 2 |
| Metal Bracket | 1 |
| Serial Tool for Configuration | 1 per order |
Note: The 125kHz LF exciter is sold separately and is not included in the standard DF704 package.
Useful inputs for faster quoting
- Bin type and installation environment (indoor/outdoor covered)
- Preferred wireless network (LoRaWAN, 4G, Cat-M+NB-IoT, or NB-IoT)
- LF exciter and vehicle identification requirements
- Optional features: GPS/BEIDOU, Bluetooth, fire detection
- Quantity and delivery schedule
FAQ
Frequently Asked Questions about DF704
What makes DF704 different from DF703?
DF704 uses laser ToF multi-point measurement (4x4 matrix, 16 points) instead of single-point ultrasonic. It adds 125kHz LF RFID vehicle identification and edge AI processing for surface profile estimation, collection verification, and smarter event recognition.
How does the multi-point detection work?
DF704 uses a laser ToF 4x4 measurement matrix with 16 detection points. It captures height distribution across the waste surface, restores the surface profile, and calculates fill-level more accurately than single-point sensing.
How does RFID vehicle identification work?
A 125kHz LF exciter on the collection vehicle wakes DF704 from 1-2 m away. DF704 identifies the vehicle, triggers measurement, and uploads collection event data. Collection completion is determined by waste height change and edge AI processing.
Can DF704 be used in outdoor bins?
DF704 is recommended for indoor waste bins and outdoor covered bins. Outdoor open-top bins are NOT recommended because direct sunlight may reduce laser ToF detection distance and measurement reliability.
What wireless versions are available?
LoRaWAN (multi-band), 4G (Asia/Europe/North America), Cat-M+NB-IoT, and NB-IoT. Final configuration depends on the selected module and target region.
How long does the battery last?
Approximately 2 years with one ER26500 battery (8500 mAh). Battery life depends on ambient temperature, signal strength, upload frequency, detection frequency, LF wake-up frequency, and GPS usage.
Is the LF exciter included with DF704?
No. The 125kHz LF exciter is sold separately and is not included in the standard package. The standard package includes the DF704 sensor, one ER26500 battery, two M4x30 screws, one metal bracket, and one serial configuration tool per order.
Is DF704 a standard product?
DF704 is available for pilot projects and small-batch pre-order programs. It is suitable for customers validating next-generation smart waste features before rollout. Quotation-based pricing.
CNDINGTEK Support
Evaluate DF704 for your smart waste project
Share bin type, network preference, LF exciter requirements, and project scale. Our team helps select the right sensor configuration and wireless version.
